100K Truck Mounted Traffic Impact Crash Attenuator
1. Introduction:
Truck mounted attenuator or TMA is a crash cushion intended to reduce the damage to vehicles and motorists resulting from collision. TMA trucks are used at static worksites like construction zones or maintainence work zones on highway to protect workers, equipment and vehicles. It is made of all aluminum and honeycomb aluminum and it can absorb the impact energy from collision, to maximize protection of personnel and construction safety.
2. Features:
1).Hydraulic turning 90 degrees
2).Can be used in any environment
3).All aluminum construction minimizes rust and other corrosive elements
3. Specification:
| NO |
ITME |
SPECIFICATION OF 100K TMA |
| 1 |
Chassis data |
EMISSION STANDARD |
NATIONAL EMISSION Ⅵ |
| Overall dimension L*W*W (mm) |
7900*2400*3930 |
| MASS Weight(kg) |
11995 |
| Wheelbase(mm) |
4200 |
| Curb weight(kg) |
11800 |
| Cabin(Person) |
3 |
| Engine brand |
Adopt national famous brand engine |
| Engine output(kw) |
117 |
| Displacement(ml) |
2951 |
| Max. Speed(km/h) |
110 |
| Fuel type |
diesel |
| 2 |
TMA DATA |
Impact force |
(1.5T-2.2T)-100km/h |
| Buffer cushion length(mm) |
3172 |
| Buffer cushion width(mm) |
2133 |
| Buffer cushion thickness(mm) |
660 |
| ground clearance(mm) |
280 |
4.Company Introduction:
Founded in 2002, Hefei Huayang Construction Machinery Co., Ltd is located in the cultural and historical city - Hefei, Anhui Province, China. After more than 20 years of development, our company has developed into a full line of special vehicle, road maintenance equipment manufacturer with fully integrated design, products development, manufacturing and distribution capabilities for both domestic and export markets.
We possess our own proprietary intellectual righted "LULAIRUIDE" brand road maintenance equipment, such as road crack sealing machines, asphalt crack router, anti collision truck, truck mounted hedge trimmer, road maintenance truck and etc. We adopt methods of serialization, standardization and modularization during our manufacturing process. Besides, we integrate advanced design concepts with actual needs of the customers. At the meantime, we gather customers′ suggestions and improve our products continuously, to keep standing at the leading edge of this industry′s technology development scope. We continuously stick the rules to provide our customers with professional, timely and considerate after-sales services.
|
|

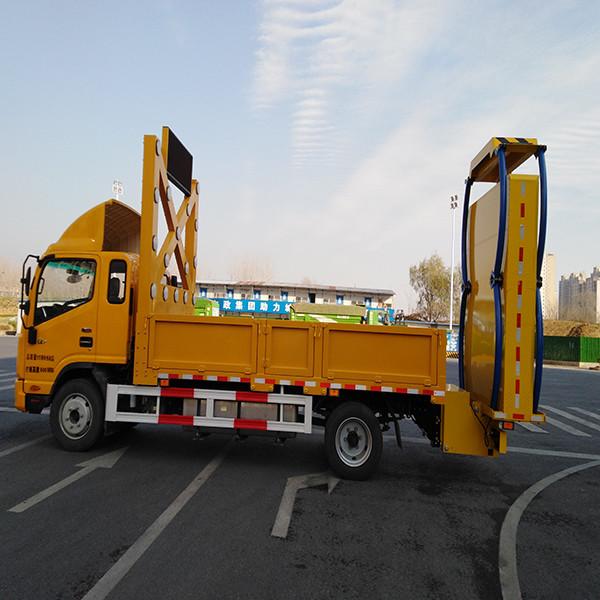

100K Truck Mounted Traffic Impact Crash Attenuator Images
|
