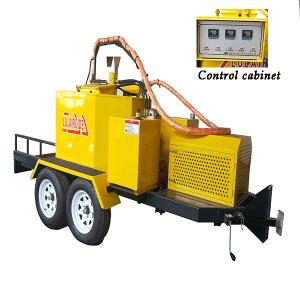

High Quality Self Propelled Road Crack Sealing Machine With 500L Asphalt Melter
1. Product Usage:
The equipment is mainly used in the rapid repair of cracks in asphalt and concrete pavements, to prevent cracks from seepage, to ensure the overall performance of the road, and to extend the service life of the road.
2. Features and benefits :
1. Concrete,Asphalt and Cement Road Crack Sealing Machine
2. Independent research and development in hydraulic drive technology, low emissions, low energy consumption, energy saving and environmental protection.
3. Advanced intelligent ignition, detection of temperature control technology
4. The unique design of oil casing hot melt
5. Unique thermal cycle heating system design
6. Efficient design of discharge system
7. The machine safety low center of gravity design
3. Parameter:
1) Net Weight: 2400kg
2) Size: 3980mm*1980mm*1830mm (L*W*H)
3) Material Melting Speed: About 40 mins
4) Hot melt kettle volume: 500L
5) Heat transfer oil / conduction oil: 120L
6) Engine: Yanmar 3TNV diesel engine
7) Engine Power: 25hp
8) Fuel Tank: 90L
9) Hydraulic fuel tank capacity: 90L
10) Burner: Imported Diesel Burner
11) Burning Power: 100000 kcal
12) Temperature control: monitoring the temperature of thermal oil filling, sealing materials and electric heating tube, the computer automatic control (when reaching the construction temperature, it would automatically conduct heat preservation procedure)
13) Temperature control scope: 0~299ºC
14) Insulating System: 220 V mains supply insulation for optional choice, do not need to start the device (optional choice)
15) Feeding mechanism: the integration of discharging control switch; Infinite speed control; Equipped with a leak-proof switch
16) Feeding hose: The electric heating tube is 6M in length, can rotate 360°, with technology in spout incubator, avoid blocking pipe problem caused by low temperature
17) Discharging flow: 0 - 60L; the infinite speed regulation control
18) Hydraulic lifting device: Lifting the slotting machine and hot air spraying gun onto the supporting plate, thus reducing labor intensity
19) Moving Method: Hydraulic rear wheel driving during the whole process; self-propelling or hand-push type as you like
20) Vehicle suspension: leverage spring compression type of shock absorber
21) TractionSpeed: 60km/h
22) Self-propelling Speed: 10km/h; the infinite speed regulation control
Hydraulic tools interface for optional choice, can be connected to any kind of hydraulic tools (hydraulic crushing picks, hydraulic cutting saw, hydraulic pump. etc)(optional choice)
4. Company Introduction
Founded in 2002, Hefei Huayang Construction Machinery Co., Ltd is located in the cultural and historical city - Hefei, Anhui Province, China. After more than 20 years of development, our company has developed into a full line of equipment manufacturer with fully integrated design, products development, manufacturing and distribution capabilities for both domestic and export markets.
We possess our own proprietary intellectual righted "LULAIRUIDE" road maintenance equipments. We adopt methods of serialization, standardization and modularization during our manufacturing process. Besides, we integrate advanced design concepts with actual needs of the customers. At the meantime, we gather customers' suggestions and improve our products continuously, to keep standing at the leading edge of this industry's technology development scope. We continuously stick the rules to provide our customers with professional, timely and considerate after-sales services. We welcome customer both at home and abroad to contact with us to make mutual benefit and get win-win cooperation. To create profit to our dear customer and let us grow stronger hand in hand.
5. FAQ
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
It's not free. Customers should charge the freight cost of express or delivery .
4. Q: What is your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal, etc.
Deposit percent can be negotiate relying on your amount .
6. Our Services
Before sales: Engineering Consultance Service & Technical Support
After sales: Process clients' feedback and or problems during the operation of the equipments/machines within 24 hours
OEM service: We accept OEM orders and 80% of our clients are enjoying OEM services.
