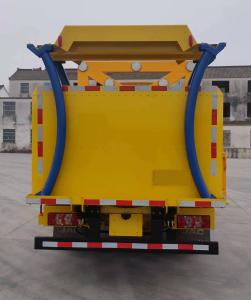

Road Safety Construction Truck Mounted Attenuator
1. Introduction:
The safety protection of the main infrastructure maintenance construction operations. The vehicles are parked behind the temporarily closed construction operation area. The anti-collision cushion absorbs the kinetic energy of the vehicles from the rear collision to provide effective protection for the staff and equipment in the construction area. At the same time, it protects the safety of the personnel in the rear impact vehicle.
2. Application:
The TMA buffer truck is specially used for repairing the cracks on the asphalt pavement , such as highway, national and provincial truck lines and municipal roads.
3. Parameter:
|
NO
|
ITME
|
SPECIFICATION OF 70K TMA
|
|
1
|
Chassis data
|
EMISSION STANDARD
|
NATIONAL EMISSION Ⅵ
|
|
Overall dimension
(L*W*W) (mm)
|
6600*2150*2920
|
|
MASS Weight(kg)
|
4495
|
|
Wheelbase(mm)
|
3365
|
|
Curb weight(kg)
|
4170
|
|
Cabin(Person)
|
2+3
|
|
Engine brand
|
Adopt national famous brand engine
|
|
Engine output(kw)
|
95
|
|
Displacement(ml)
|
2183
|
|
Max. Speed(km/h)
|
110
|
|
Fuel type
|
diesel
|
|
2
|
TMA DATA
|
Impact force
|
1.5T-70km/h
|
|
Buffer cushion length(mm)
|
1954
|
|
Buffer cushion width(mm)
|
1853
|
|
Buffer cushion thickness(mm)
|
660
|
|
ground clearance(mm)
|
150
|
