Asphalt Crack Repair Driveway Sealer(LLRD-G100)
Cracking in pavements occurs when a stress is built up in a surface layer that exceeds the tensile or shear strength of the pavement causing a fissure or crack to open. Crack sealing and crack filling are methods which can be used to repair these cracks in pavement surfaces. The cause of the crack and its activity play a dominant role in determining the success of crack sealing or filling operations.
Product description:

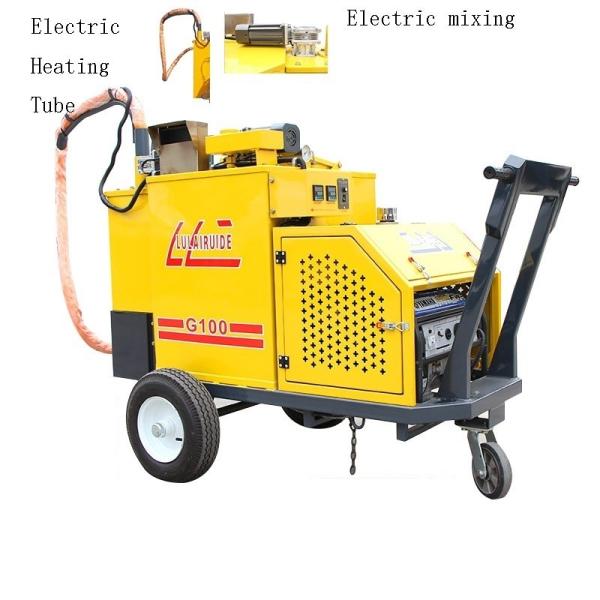

LLRD-G100 asphalt crack filling machine is mainly used for repairing the crack of road, pavement, driveway, parking lot, highway and other asphalt surface.
Specification for LLRD-G100 ROAD CRACK SEALING MACHINE
- Moving Method: hand-push or self propelling
|
|
9) Output Power: 50HZ |
| 2) Material Melting Time: Within 40 Min |
|
10) Mixing Method: Electric Operated Mixing |
| 3) Weight: 240KG |
|
11) Rated Power: 2.0 KW |
| 4) Electric heating hose: 4M in length, electric heating during the whole procedure, more smoothly when sending out the glue |
|
12) Hot melt kettle volume: 100L
13) Voltage: 220V
14) Heating Method: heat transfer oil indirect heating |
| 5) Size: 1860*1000*1240MM (L*W*H) |
|
15) Burner: Riello Diesel Burner |
| 6) Heat transfer oil: 40L |
|
16) Asphalt pump: high pressure wear-resisting anti-clogging asphalt pump, pump adopts inorganic speed regulating motor, regulate the flow of sealant |
| 7) Generator: Yamaha Generator |
|
17) Burning Power: 50000KCAL |
| 8) Fuel Tank: 30L |
|
18) Turning Method: turn the rear universal, flexible steering, convenient in mobility. |
Performance and features
1. Small volume and light weight makes it move easily. Configuration of the ramp stop device is easy to operate, therefore, irrigation of sealant is evenly and efficient
2. Heat conduction oil indirectly heats the joint sealant, effectively prevent high temperature carbonization of the crack seal material
3. Equipped with imported Italy EACOON diesel burner; heating is more efficient
4. The use of advanced control instrument, can clearly display and adjust the temperature of electric heating tube and heat conduction oil. The operator is clear about the operation of the machine at a glance
5. The electric heating hose can rotate 360 degrees, and in use process need no clean-up
6. Discharge pump is controlled through infinitely adjustable-speed motor, can regulate the flow of sealant according to need
Introduction of parts and components:
- Generator set:The machine adopts imported Yamaha generator
Rated Power: 2.0 kw
Voltage: 220 v
- Hot melt kettleHot melt kettle uses thermal oil heating which has uniform heating and sealant is not easy to carbide in the kettle
- Temperature monitoring systemTemperature monitoring system, LED digital display temperature control system, can monitor and adjust the temperature of the heat conduction oil and the temperature of the electric heating tube
- Riello diesel burnerThe heating system of imported Riello diesel burner can not only provide the ideal heating effect, it's also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations
- Electric mixing system: reduce labor intensity, make the heat more evenly
6. External type material pump
External type material pump: greatly simplifies the equipment maintenance procedures and improves the service life of the machine
7. Electric heating tube
Electric heating tube: 4 m in length, can rotate 360 degrees. Applying the electric heating tube could smooth the process of glue pushing. The electric heating tube uses plastic Teflon as inner core, the outside of inner core is winded by heating wire, to ensure the maximum stretch and the highest heat transfer. It has multi-layer insulation; Outer is asbestos and heat pipe is yellow
8. slope locking devices
Safe and convenient slope locking devices: even if under slope construction, it can ensure safe and effective stop of the machine. It is especially suitable for mountain road usage
9. Humanized sealing spout scraper
Humanized sealing spout scraper, is more efficient in operation, reduce the labor intensity of workers, and is equipped with a drip discharge valve, completely eradicate the road pollution
