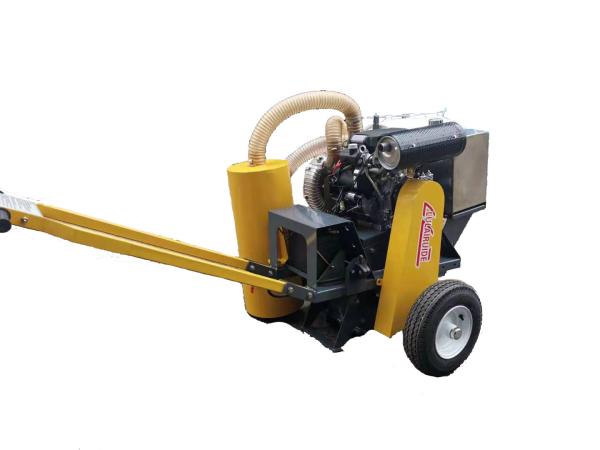

Dust Free Type Road Pavement Concrete Crack Grooving Machine
1. Description:
Hefei Huayang Dust Free Type Road Pavement Concrete Crack Grooving Machine offers a more productive method of slottting random cracks in asphalt.
2. Features:
- Special vacuum devices make it dust-free during grooving.
- Gasoline Kohler engine, 25hp, air-cooled, with two cylinder. Triple air filter maximizes the life span of engine.
- Cutting depth adjustable: 0-35mm,cutting width adjustable:10-50 mm.
- Special design of electromagnetic clutch make it more safety and economic efficiency. And save the engine gasoline consumption.
- V diamond blades can be optional
3. Parameter:
1) Model: LLRD-K25C
2) Engine: Kohler Gasoline engine, double cylinder, air cooling
3) Engine Power: 25HP
4) Starting mode: electric starting
5) Fuel tank: 20L
6) Slotting width: 10-50mm (adjustable)
7) Slotting depth: 0-30mm (adjustable)
8) Blades: 6 pcs carbide blades
9) Crack tracking indicator: It can instruct you to cut out the groove of irregular cracks
10) Emergency braking system: Equipped with emergency braking, braking can be achieved within 7 seconds.
11) Fan capacity: 10m³/h
12) Diameter of dust collection hose: 100mm
13) Diameter of dust collection tank: 32cm
14) Volume of Dust collecting box: 10L
15) Diameter of dust collecting bag: 40cm
16) Length of dust collecting bag: 60cm
4. Company Introduction:
Founded in 2002, Hefei Huayang Construction Machinery Co., Ltd is located in the cultural and historical city - Hefei, Anhui Province, China. After more than 20 years of development, our company has developed into a full line of equipment manufacturer with fully integrated design, products development, manufacturing and distribution capabilities for both domestic and export markets.
We possess our own proprietary intellectual righted "LULAIRUIDE" road maintenance equipments. We adopt methods of serialization, standardization and modularization during our manufacturing process. Besides, we integrate advanced design concepts with actual needs of the customers. At the meantime, we gather customers′ suggestions and improve our products continuously, to keep standing at the leading edge of this industry′s technology development scope. We continuously stick the rules to provide our customers with professional, timely and considerate after-sales services. We welcome customer both at home and abroad to contact with us to make mutual benefit and get win-win cooperation. To create profit to our dear customer and let us grow stronger hand in hand.
5. FAQ:
1. How to seal cracks in the asphalt driveway?
Cracks in an asphalt driveway need to be repaired to prevent rainwater from sweeping through and causing further damage. To seal cracks and repair an asphalt driveway:
1. Kill and remove any weeds.
2. Groove the crack with crack router.
3. Blow or sweep out any loose debris.
4. Fill the crack with asphalt crack filler.
5. Open to the traffic.
Sealing a crack isn't a difficult task, but without doing the necessary preparation before applying the sealer, your project can very easily go wrong, and you can find yourself with an improper seal. Contact us now for a ideal crack sealing equipment and material list.
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
30 days for order quantity lower than 10 sets; For more quantity, need to check.
4. Can I get a discount?
Yes, for the order quantity more than 5 pcs, please contact us to get the best price.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
