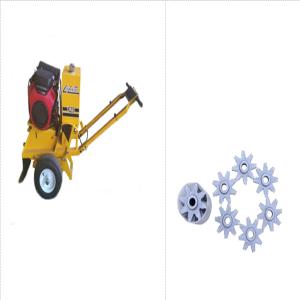

Pavement Crack Router Road Grooving Machine OEM
Application:
It is used to widen the cracks before filling repair. The equipment has the advantages of convenient use, fast expansion speed, long service life of blades and adjustable expansion width. It is widely used in joint expansion of various pavement.
The width and depth of enlargement can be adjusted by adjusting the size and number of blades by using non-coercive combined cutting tools.
Specification:
Pavement Crack Router Road Grooving Machine LLRD-K25
1. Honda GX690 25 HP gasoline engine, 12V large-capacity battery; Four banded v-belts, safe electromagnetic clutch brake.
2. Six-piece carbide cutter set, reinforced bearing and cutter drum.
3. Rubber, brush double protective cover prevents gravel dust splashing.
4. Lengthened slip-proof handle equipped with emergency stop switch; Visible crack and depth tracking, accurate cutting.
Features:
1. Road Grooving Machine adopts GX690 double cylinder gasoline engine of Honda, which has strong power and stable performance.
2. The engine adopts triple air filter system, which minimize reduces dust impact on engine life.
3. Road Grooving Machine is equipped with electric regulating lift device, it can be adjusted cutting depth flexibly.
4. User-friendly emergency stop switch, which ensures accidents happening.
5. Reasonable crack pointer avoid working fault.
6. Alloy towing base plate can be adjusted according to workers stature.
PARAMETER:
| Model |
LLRD-K25 |
| Engine |
Honda GX690 Gasoline engine, double cylinder, air cooling |
| Engine Power |
25HP |
| Starting mode |
electric starting |
| Fuel tank |
20L |
| Slotting width |
10-50mm(adjustable) |
| Slotting depth |
0-30mm (adjustable) |
| Blades |
6 pcs carbide blades |
| Crack tracking indicator |
It can instruct you to cut out the groove of irregular cracks |
| Emergency braking system |
Equipped with emergency braking, braking can be achieved within 7 seconds. |
